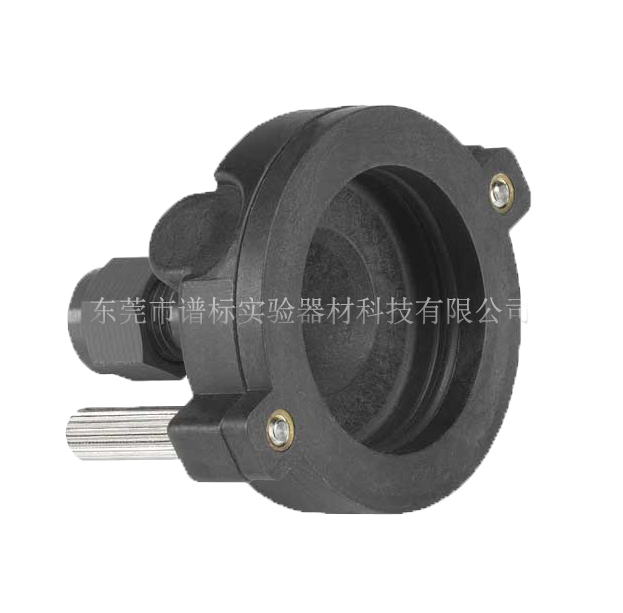

N0680504/N0680504-端蓋組件-Optima 8x00 ICP-OES 耗材配件
儀器廠商：Perkin Elmer
儀器名稱：電感耦合等離子體光譜儀ICP-OES
配件名稱：端蓋組件
配件編號：N0680504/N0680504
材料：PTFE
型號兼容：Avio 500, Optima 4x00 DV, Optima 2x00 DV, Avio 200, Optima 5x00 DV, Optima 7x00 DV, Optima 8x00
技術類型： ICP-OES
價格參考：2793.00元
端蓋組件，用于連接同心錐™ 與Ryton Scott噴霧室類似的霧化器，用于Avio®200/500 ICP-OES和Optima®2x00 DV/4x00 DV/5x00 DV/7x00 DV/8x00 ICP-OES系列儀器。
裝配包括：
霧化器O形圈，數量。1 (00473194)
滾花螺釘，數量。2 (00473539)
插入環，數量。1 (00473543)
O形圈，內徑34.29毫米，數量。1 (09902033)
螺母，數量。1 (09920521)
端蓋，數量。1（N0681686）
端蓋墊圈，數量。1（N0681687）
霧化器配件參考表
| 霧化器 |
| 序號 |
Perkin Elmer |
Meinhard |
Description |
| 1 |
00472020 |
TR-30-A3 |
Type A, General Purpose |
| 2 |
N0777707 |
TR-50-K1 |
Type K1, Ar low-flow, high dissolved solids |
| 3 |
N0681574 |
TR-30-K3 |
Type K3, Reduced flow and organics |
| 4 |
N0777414 |
F5-50 |
Liquid end connector kit, 4mm |
| 5 |
N0777460 |
Snapper |
Nebulizer Clip Tyton Snapper for Meinhard Nebulizers |
| 6 |
N0680504 |
N0680504 |
End Cap for Concentric Glass Nebulizers |
| 7 |
N8122462 |
TRP-50-A0.5 |
MicroMist Equivalent - Ar: 0.7 L/min, Uptake: 0.2mL/min (fittings included) |
| 8 |
N0775346 |
TRP-50-A0.5 |
MicroMist Equivalent - Ar: 0.7 L/min, Uptake: 0.6mL/min (fittings included) |
| 9 |
N0775345 |
TR-50-C2 |
SeaSpray Equivalent - Ar: 0.7L/min (fittings included) |
| 10 |
N0775330 |
MBR-Peek Mira Mist-P |
PEEK MiraMist, 0.2 to 2.5mL/min |
| 11 |
N0777219 |
ME4040-57 |
Poly-Pro Self Aspirating Nebulizer with external 1/4-28 threaded connector |
| 12 |
N0777049 |
ME2040-57 |
PFA-ST Self-aspirating Nebulizer-Concentric with external 1/4-28 threaded connector |
| 13 |
N0777676 |
MEST3-57 |
ST3 MicroFlow PFA nebulizer with external 1/4-28 threaded connector |
| 14 |
N0770358 |
N0770358 |
GemCone Low-Flow Nebulizer |
| 15 |
N0690670 |
N0690670 |
GemCone High Dissolved Solids Nebulizer |
| 16 |
N0371505 |
N0371505 |
Capillary Gland Nut for GemTip Nebulizers |
| 17 |
N0770336 |
N0770336 |
Quick Disconnect Tubing |
| 18 |
N0780546 |
N0780546 |
GemTip Cross-Flow II Nebulizer |
| 19 |
N0780676 |
N0780676 |
Gem Tip Cross-Flow II Tip Kits |
| 20 |
N9300067 |
N9300067 |
GemTip Cross-Flow II Ryton Nebulizer Assembly O-Ring Kit |
| 21 |
|
PRL-02 |
Concentric Glass and Quartz Nebulizer Cleaner |
